How to Create a Mapping Table to use with a Transit Guarantee Template

Before creating a guarantee template to use with NCTS5 transit declarations, you must have a mapping table setup. Follow the instructions below to create the mapping table.

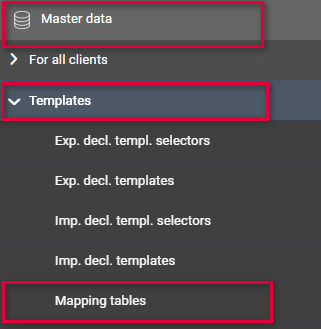

• From the Office menu, select Master data > Templates > Mapping tables.

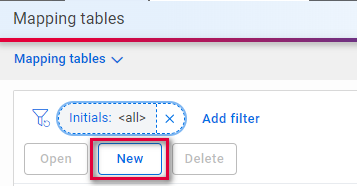

• Select New.

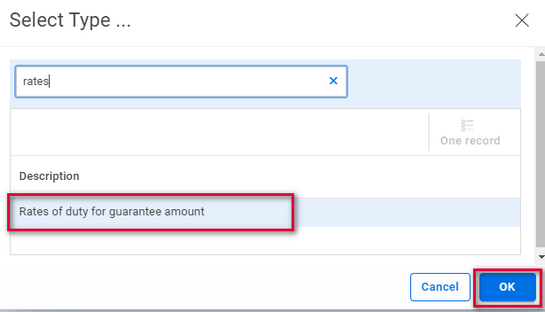

• From the list displayed, select 'Rates of duty for guarantee amount' and click OK.

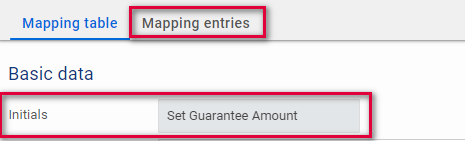

• Enter 'Set Guarantee Amount' into the Initials field, and then select the Mapping entries tab.

Values can be entered in two ways: via import of a CSV file, or manually.

Adding Data via Import

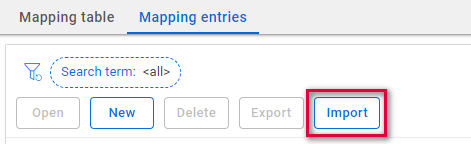

• To import a CSV file, click the Import button.

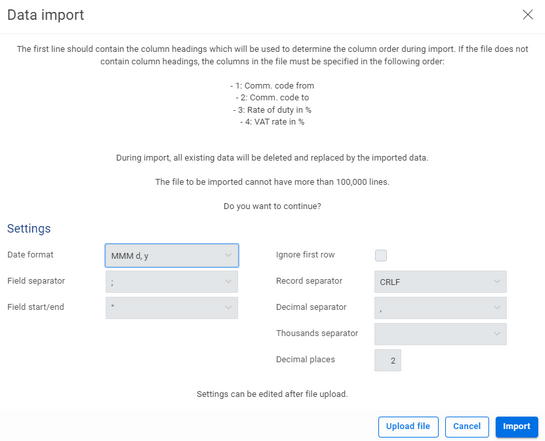

• Information regarding the format and requirements of the data will be shown. Note that all existing data will be deleted and replaced by the imported data.
• Click the Upload file button to select the file and then Import to complete the process.

Adding Data Manually

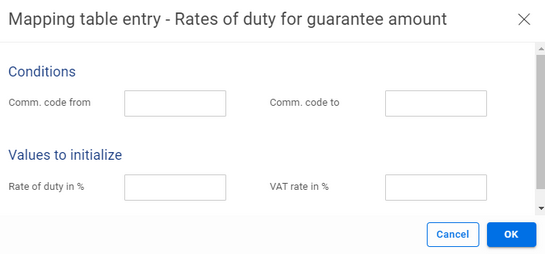

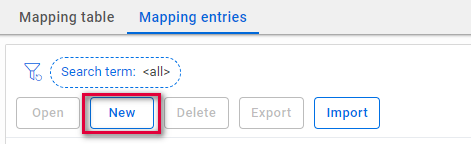

• To add data manually, click the New button to display the entry screen.
• Enter the required data and click OK when done.
• Click the New button again to add more entries, as required.
• When complete, click the Save & close button to save the mapping table.

The transit guarantee template can then be created.
